Ship Design

Concept Design

Scope of work / Deliverables

  • Review of the design and operational requirements
  • Identifying design risks
  • Evaluation of design alternatives
  • Evaluation of equipment combinations
  • Determination of main particulars, deadweight, speed, and power requirements
  • Development of Concept Design documentation including brief specification, preliminary general arrangement, preliminary midship section, etc.

BASIC DESIGN

Scope of work / Deliverables

  • Hull form development
  • Stability evaluation
  • Hull structure design
  • Outfit & Accommodation design
  • Machinery & HVAC design
  • Piping design
  • Electrical design

Conversion Design

Slider 1

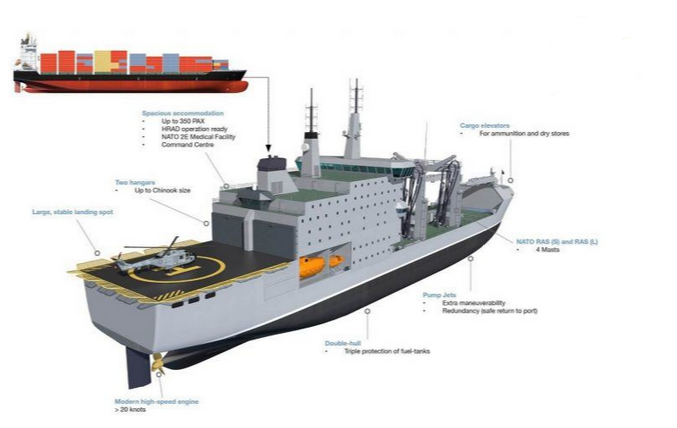

    Changing the use of a ship or making significant changes to its capabilities is a major undertaking but TechNautic Solution with its combination of new built and maintenance / refit skills is a stronger in this sector. We work especially closely with the offshore and marine sector on projects such as converting drilling rigs to accommodation units or transforming conventional ships into offshore installation vessels by lengthening decks and adding accommodation, cranes, thrusters and DPS and A Container Ship To An Auxiliary Oiler Replenishment Ship by modifying some parts of ship and adding more accommodation on cargo area to resolve its purpose and Many more in line of conversion.

    We have lengthened all type of conversion vessels including ferries and fishing trawlers and widened others. We provide cost and time effective design to resolve and minimise fabrication work. Conversions can deliver major savings in both time and cost compared to a new build and require fewer inputs.

    Scope of work / Deliverables

    • Project requirement review/analysis
    • Master conversion plan
    • Evaluation of design alternatives
    • Providing class approval drawing
    • Providing production related drawing for modification part
    • MTO.
    • Site support

    Production Design

    Scope of work / Deliverables

    • Fabrication drawings & Block Assembly Sequence
    • Hull Parts List
    • Weight & COG list
    • Block, Panel, Sub panel, Part & Profile sketches
    • Nesting plan and NC tapes
    • Cutting and bending template drawings
    • Pin jig information
    • Installation drawing
    • Tray List
